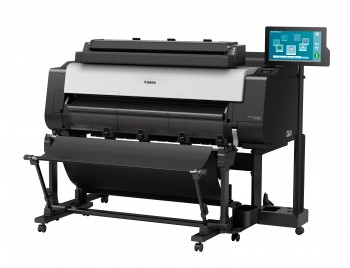

Canon imagePROGRAF TX-4000 MFP T36 44" 5-Color Large Format Printer

The Canon imagePROGRAF TX MFP T36 systems are multicomponent, multifunction solutions for architects, engineers, construction, GIS, and other professionals who need to scan, edit, save, share, and print large-format documents easily and efficiently. The imagePROGRAF TX Series printers satisfy the needs of the high-volume CAD and low-volume LED plotter markets with print quality, usability, security, and print speeds up to 147, 24” x 36” prints per hour (plain paper, fast mode).

Print

● Up to 2400 x 1200 dpi

● LUCIA TD 5-color Lucia pigmented ink system

● Print Nozzles - 5120 matte black, 2560 nozzles per each other color

● 5 picoliter droplet size

● Media width of 8" - 44" from cut sheet or rolls with 2" or 3" core

● Sub-Ink Tank System - works to remove all the ink in the tank before having to replace it, helping to eliminate any wasted ink. Empty tanks can also be replaced on the fly, without stopping the printer.

Scanner

● Scan up to 13" per second monochrome and 6" per second color

● Scan documents up to 2 mm thick

● Face up, front load, rear exit with straight paper path

● Max image width 36", max media width 38"

● Maximum resolution 1200 dpi (optical)

● Easy to use interface with customizable background and presets

● Scan to multipage PDF as a standard feature

● Ability to mark-up documents directly on the monitor

● Realtime preview on 15.6" touchscreen

● Single Eye - does not stitch images together

● Dual lamps to eliminate shadows from crease lines

Print Management Solutions

● Direct Print & Share

● Direct USB printing

● Wi-Fi connectivity is standard

● AutoCAD Optimized Printer Driver

● FREE Poster Artist Lite

● Optional full Poster Artist for more templates and use with variable data

● Accounting Manager to track up to 50 devices

● Canon's Print Plug-in for Microsoft Office for easy scaling, paper size selection and printing

● Media Configuration Tool

Features

● Automatic media loading

● Borderless printing

● 1.07 print head with 15,360 nozzles

● LUCIA TD 5-color ink system

● High-speed L-COA PRO processor

● High-precision unibody design

● Scanner and printer work independently, allowing for greater productivity

● Scanner attaches to the top of the printer

● Monitor stand attaches directly to the printer stand

● (Optional) Multi-function Roll System to load a 2nd media type or configure the printer as a bi-directional take-up unit

● TX Stacker for output, holds up to (100) 36" x 48" prints

● Advanced software and workflow solutions

● Compact design

● Wi-Fi connectivity standard with the imagePROGRAF TX series

● Direct USB drive printing

● User replaceable items: ink tank, print head, maintenance cartridge and cutter blade

Specs:

Canon TX-4000MFP Spec Sheet
