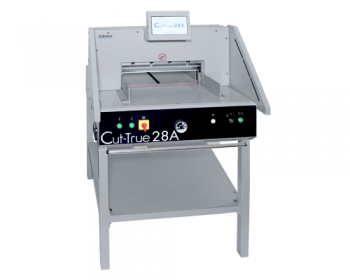

Formax Cut-True 28A Programmable Automatic Guillotine Cutter

The Formax Cut-True 28A Programmable Automatic Guillotine Cutter offers precision cutting for paper stacks up to 18.9” wide. User-friendly, intuitive features include a touchscreen control panel, automatically adjusting back gauge and the capacity to program up to 99 jobs with up to 30 cuts each. An infrared light beam safety curtain provides safety and convenience as it shuts down operation if the light plane is interrupted.

Operation of the Formax Cut-True 28A Programmable Automatic Guillotine Cutter is simple: utilize the touchscreen control panel to program and select job settings, then load a stack of paper, up to 3.15” high. Set the back gauge using the touchscreen., and the electronic fine-adjustment knob. The bright LED Cutting Line allows operators to see exactly where the blade will cut and make fine adjustments. The electronically controlled two-hand operation engages the hardened steel blade for crisp, accurate cuts, every time.

Standard safety features include a wooden paper push for safe alignment, a lock with key, blade lock, external blade depth adjustment, automatic blade return from any position, and an easy-to-use blade change safety tool.

The Cut-True 28A is ideal for transforming large sheets into brochures, invitations and more, with crisp, accurate cuts, and is a welcome addition to print shop and in-plant finishing operations.

Features:

● Standard 110V power

● UL approved

● Programmable touchscreen control panel

● Electronic two-button operation

● Automatic paper clamp and back gauge

● Infrared light beam safety curtain

● Infrared Safety Curtain

● Cuts stacks 3.15" high

● Cuts sheets up to 18.9” wide

● Cut length behind the blade of 18.9”

● Program up to 99 jobs with up to 30 cuts each

Specs:

Cut-True 28A Spec Sheet

Demonstration Video:
