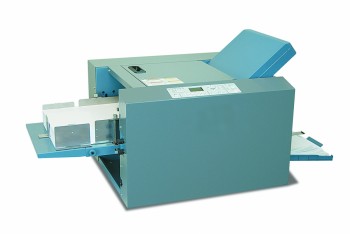

Formax FD 3302 Air-Suction Folder

The FD 3302 Air-Suction Document Folder offers high performance folding in a compact tabletop unit, ideal for digitally printed documents on heavy and coated stock. The air-suction feed technology reduces static electricity and minimizes feed marks common in traditional friction feed systems. The FD 3302 utilizes internal fans to produce air and suction for quiet operation in a smaller footprint. The feeding system also includes a side air system for enhanced feeding of heavier stocks and larger sheets of paper.

With a speed of up to 18,600 sheets per hour, and a feed tray capacity of up to 625 sheets, the FD 3302 quickly powers through a range of applications, all at the touch of a button, while optical and ultrasonic double feed detection ensures document integrity.

It’s designed to handle a variety of paper weights and sizes, up to 25.5” long, combining an extended infeed tray with variable fan speed and air flow that can be adjusted independently using the interactive control panel and external adjustment knobs.

User-friendly features include automatic paper size detection and fold plate settings, a 4.3” color touchscreen LCD control panel, six programmed fold settings, and the ability to store up to 30 custom folds. The FD 3302 includes a cross folding guide, a four-digit counter with batch counting capability, four fold rollers for accuracy, and a variety of document security features.

Fully automated and insulated for quiet operation, the FD 3302 is ideal for on-demand printing in the office environment.

Features:

●Pre-Programmed with Six Standard Folds: C, Z, Half, Fold Out, Gate, and Double Parallel

●Custom Folds: Up to 30 custom folds can be programmed and stored

●Speed: Up to 18,600 sheets per hour

●Air-Suction Feed System: Easily handles static buildup in digital prints and minimizes feed marks

●Automatic Paper Size Detection: Recognizes the most popular sizes

●Color Touchscreen Control Panel: User-friendly and intuitive, includes energy-saving mode

●Adjustable Air Flow: Allows for feeding consistency on varying paper weights/sizes

●Batch Counting: Programmable to process pre-set number of sheets into sets with a delay between sets

●Noise Reduction: Fold plates are enclosed and insulated to reduce operating noise with built-in DC fans

●Fault-Detection Features: Paper Out, Misfeed, Double Feed, Paper Jam, Top Cover Open, Paper Size Error

Specs:

FD 3302 Spec Sheet

Demonstration Video:
