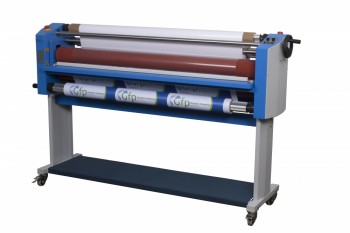

GFP 363TH 63” Top Heat Laminator
Sign shops and digital printers now have an affordable option for pressure-sensitive applications. The GFP 363TH 63” Laminator delivers labor-saving features, rugged construction, and high-quality output in an entry level machine. Building off of the 255C Cold Laminator, the 363TH adds top heat for better over-lamination, mounting, and board coating results.
To make production easier and more efficient, the GFP 363TH features new 3” aluminum tube quick-grip film shafts with width measurements for easy loading and alignment, integrated top liner and rear output rewinds for roll-to-roll applications, and new metal alloy tubular heaters to reduce breakage. Ideal for signs, banners, displays, boards, graphics, mounting, and much more! Includes: stand and foot switch.
Features:
●Laminating Width: Up to 63”
●Mounting Capacity: Up to 1”
●Film Core Capacity: 3”
●Laminating Speed: Up to 20’ per minute
●Max Temperature: 140° F
●Speed & Temperature Controls: Quickly adjust speed and temperature to suit individual projects
●Tension Adjustment: Single knob adjustment allows operator easy control over output
●Single Pressure Adjustment: Allows for micro-adjustments for uniform pressure
●Top & Rear Take-Up Mandrels: Peel away release liner and roll it up for easy discard
●Integrated Top & Rear Liner Rewind: Chain drive, for roll-to-roll applications
●Swing-Up Feed Table: Useful for laminating or mounting large documents
●Metal Alloy Tubular Heaters: Reduce breakage and provide superior performance
●3” Aluminum Quick-Grip Shafts: For easy loading and alignment
●Foot Pedal Included: For hands-free operation
●Warranty: One-Year Parts & Labor Warranty. Installation available.
Specs:
GFP 363TH Spec Sheet
Demonstration Video:
Optional Machine Dust Cover Available... call for details!
