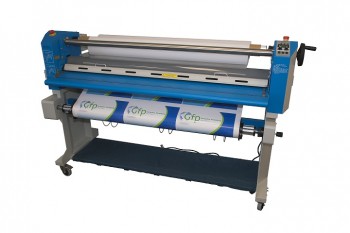

GFP 563TH-4RS 63” Top Heat Laminator
Do you want to improve production quality? Shorten film loading time? Make fewer film changes? Increase throughput speed? The GFP 563TH-3R 63" Top Heat Laminator solves all those problems and more by providing advanced features at an economical price point.
Loaded with features such as swing-out supply shafts, Quick-Grip film shafts, photoelectric eye, metal alloy heater, and motorized rear rewind, the GFP 563TH-4RS is designed to facilitate a 50% faster throughput- sure to jump start your production and save time and money. Ideal for signs, banners, displays, boards, graphics, mounting, and much more! Includes: stand & motorized rear rewind with rotary slitters for roll-to-roll applications.
Features:
●Laminating Width: Up to 63”
●Roller Diameter: 4.5”
●Mounting Capacity: Up to 1”
●Motorized rear rewind with Slitters: Included
●Max Temperature: 140° F
●Laminating Speed: Up to 20’ per minute
●Single Pressure Adjustment: Hand wheel allows for micro-adjustments for uniform pressure
●Heat Method: Metal alloy heaters reduce breakage and provide superior performance
●Max Roll Diameter: 8” OD top; 16” OD bottom
● Supply Shafts: Two swing-out supply shafts reduce loading time, saving money and effort
●Tension Adjustment: Single knob adjustment allows operator easy control over output
●Speed & Temperature Controls: Quickly adjust speed and temperature to suit individual projects
●Top & Rear Take-Up Mandrels: Peel away release liner and roll it up for easy discard
●Integrated Top & Rear Liner Rewind: Chain drive, for roll-to-roll applications
●Swing-Up Feed Table: Useful for laminating or mounting large documents
●3” Aluminum Quick-Grip Shafts: For easy loading and alignment
●Photoelectric Eye: For safety, prevents entanglement with unit
●Power: 110v, 12A, 1320W
●Dimensions: 87” x 26.5” x 52.5”
●Weight with Stand: 491 lbs.
●Warranty: One-Year Parts & Labor Warranty
●OPTIONAL: Installation is available at an additional charge
Specs:
GFP 563TH-4RS Spec Sheet
Demonstration Video:
Optional Machine Dust Cover Available... call for details
