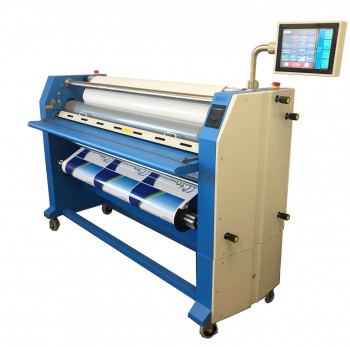

GFP 663TH 63” Production Top Heat Laminator

The GFP 663TH 63" Production Top Heat Laminator is Gfp’s most advanced laminator with “Smart Finishing Technology” for the demanding Wide Format Finishing Professional.

The 10” tablet style touchscreen user interface provides user-friendly access to all functions. The GFP 663TH Production Top Heat Laminators microprocessor technology has expanded capabilities for Wide Format Finishing Professionals by increasing the efficiency, accuracy and reliability of finishing equipment. But that’s not all. Now operators can program, monitor and display all machine functions and view operator tutorials through a powerful digital touchscreen micro-controller. As a result, the GFP 663TH expands operator expertise, productivity and accuracy providing consistent quality output and fewer production errors.

Features:

● Laminating Width: Up to 63”

● Roller Diameter: Up to 5” Silicone

● Mounting Capacity: Up to 1”

● Film Core Capacity: 3”

● Laminating Speed: Up to 20’ per minute

● Max Temperature: 140° F

● Heat Method: Metal alloy heater

● Pressure Adjustment: Electric Servo motor

● Supply Roll Diameter (max): 8” OD (top) and 16” OD (bottom)

● Supply Shafts: 2 Swing-out

● Swing-Out Shaft Max Weight: 115 lbs

● Rewind Shafts: 2 (1 Swing-Out)

● Integrated Rear Rewind: Motorized for longer roll-to-roll operation (included)

● Rear Inline Slitters: Rotary Design to save time and increase productivity

● Film Usage Counter: Tracks film usage per job, per day, and lifetime

● Roll Label Printer: Generates labels with film description and footage for partial rolls

● Power: 120v, 60Hz, 12A, 1440W

● Dimensions: 83” x 30.7” x 63”

● Weight with Stand: 675 lbs.

● Warranty: One-Year Parts & Labor Warranty. Installation is available at an additional charge.

Specs:

GFP 663TH3 Spec Sheet

Demonstration Video:

Optional Machine Dust Cover Available... call for details
