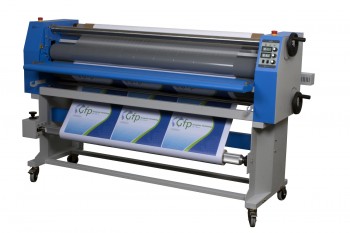

GFP 865DH-4RS 65” Dual Heat Laminator
For finishing professionals who need versatility, quality, and economy in one machine for a wide variety of applications, the GFP 800 Series delivers. The GFP 865DH 65" Dual Heat Laminator quickly and efficiently turns out thermal encapsulation with low melt films (1.5-10 mil), PSA lamination, and mounting jobs with perfect, wrinkle-free results every time.
Ultimate flexibility, fast and easy roll changes, and professional features such as Quick-Grip supply shafts, independent top and bottom heaters, web clutch adjustment, motorized rear rewind, and swing-up feed table come together in one industrial design, engineered to provide years of maintenance-free service. Ideal for signs, banners, posters, displays, boards, graphics, mounting, and much more! Includes: stand, rear rewind with rotary slitters and foot pedal.
Features:
●Laminating Width: Up to 65”
●Roller Diameter: Up to 5”, silicone
●Mounting Capacity: Up to 1”
●Supply Roll Diameter (max): 16” bottom, 8” top
●Film Shafts: 3” Quick-Grip
●Media Alignment Discs: Prevent supply rolls from telescoping
●Motorized rear rewind with rotary slitters: Included (not for use with thermal films)
●Max Temperature: 266° F
●Heat Method: Quartz heater with independent top and bottom control
●Film Thickness: Up to 10 mil low melt
●Laminating Speed: Up to 13’ per minute
●Drive Motor: DC geared motor
●Speed & Temperature Controls: Quickly adjust speed and temperature to suit individual projects
●Pressure Adjustment: Dual hand wheels allow for uniform pressure
●Web Clutch Adjustment: To fine-tune output quality
●Swing-Up Feed Table: With 38" height, useful for laminating or mounting large documents
●Photoelectric Eye: For safety, prevents entanglement with unit
●Power: 220v, 60Hz, Single phase 24A, max 5760W
●Dimensions: 87” x 34” x 49”
●Net Weight with Stand: 846 lbs
●Warranty: One-Year Parts & Labor Warranty. Installation included.
Specs:
GFP 865DH-4RS Spec Sheet
Demonstration Video:
Optional Machine Dust Cover Available... call for details!
