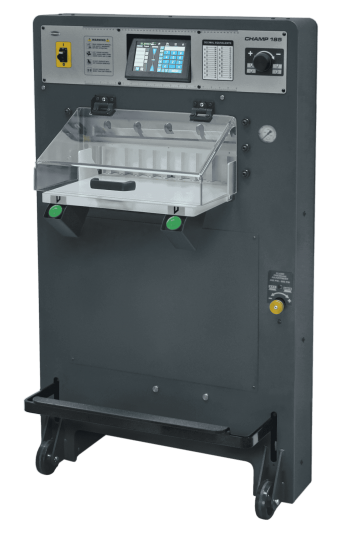

Challenge CHAMP 185 Pro Hydraulic Cutter with Tilt Shield
TheCHAMP 185 Pro Cutter with Tilt Shield model brings hydraulic powered strength and durability along with easy-to-use controls to the 18.5” width cutter market that is crowded with electric motor powered machines. The CHAMP’s heavy-duty welded frame, using ¼” thick cold rolled steel throughout, offers a superior design allowing operators to cut today’s hard stocks accurately in piles of up to 3.25” tall. The USA made CHAMPS are portable with lockable casters allowing the machine to be easily moved – even through 36” wide doorways.
Features
● Tilt Shield
● Maximum Cut Width: 18-1/2”
● Minimum Cut Depth: ¾”, without false clamp plate
● Maximum Cut Height: 3-1/4”
● Length Behind Blade: 19”
● Table Space in Front of Knife: 13-1/4”
● Back Gauge Adjustment via Touchpad
● Clamp & Cut Method: Adjustable Hydraulic up to 2,350 lbs of pressure
● Red LED Laser Cut Line
● Dual Cut Button System
● CE certified / meets ANSI B65.3 safety standard
● 120 Volt AC, 60 Hz, 1 Phase, 14 Amp (service size – 20 Amp), power cord included
● Manufactured in the USA!
Pro System Features
● 7.1” Color Touch Screen
● Programmable with 99 programs / 99 cuts per program memory
● USB port for expandable memory storage
● Clean layout and easy to navigate software
● Repeat and loop commands to simply program repetitive cut sequences
● Custom prompt creation in jobs
● Simple program adjustments to address wandering registration by the printer
● Instant job generation from cuts history (cut-and-record)
● Built-in step-and-repeat function
Includes
● One HSS knife, three cutting sticks, wood jogging aid, tool kit, knife change holder assembly & operators manual
● 1-year warranty
Optional
● Table Extensions, 12” x 19”
● False Clamp Plate
● Book Trimming False Clamp Plate
● Foot Pedal Clamping
● Power Option 1: 220 Volt AC, 60 Hz, 1 Phase, 10 Amp (service size – 20 Amp), power cord included
● Power Option 2: 230 Volt AC, 50 Hz, 1 Phase, 10 Amp (service size – 20 Amp), power cord included
Spec:
CHAMP® 185 Spec Sheet
